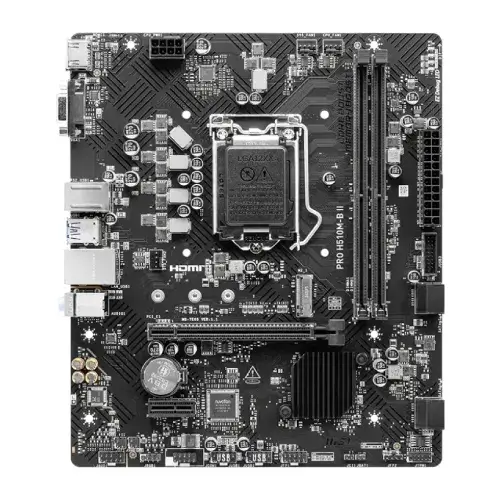

MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| Chipset | INTEL H470 |
| Form Factor | mATX 202mmx236mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 1x M.2 |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| HDMI | 1x HDMI 1.4 |
| Display Port (s) | 1x VGA |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek 8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| Special Features | 4x EZ Debug LED |
| Manufacturing Warranty | 3 years Warranty |
Description
MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard The MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard is an excellent option for individuals building a mid-range PC, supporting 10th Gen Intel Core, Pentium Gold, and Celeron CPUs via an LGA 1200 socket. This MSI motherboard supports DDR4 memory at speeds up to 2933MHz and has a maximum capacity of 64GB, delivering smooth and efficient performance. The MSI 10th Gen Motherboard has HDMI (supporting 4K 30Hz) and VGA (supporting up to 2048x1536 50Hz) connectors to meet a variety of display needs. The MSI H510 motherboard has one PCI-E x16 slot and one PCI-E x1 slot for expansion, as well as one M.2 slot and four SATA 6G ports for plenty of storage options. 4 USB 2.0 ports, 2 USB 3.2 Gen1 Type A ports (rear), and 2 USB 3.2 Gen1 Type A ports (front) provide ample connectivity. It uses the Realtek ALC897 Codec for 7.1-channel high-definition audio, which is complemented by the Realtek 8111H Gigabit LAN for reliable networking. Other features such as Core Boost technology, Audio Boost, and Steel Armor promise improved performance, higher sound quality, and VGA card safety, making the MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard an all-around motherboard for a variety of computing applications.
