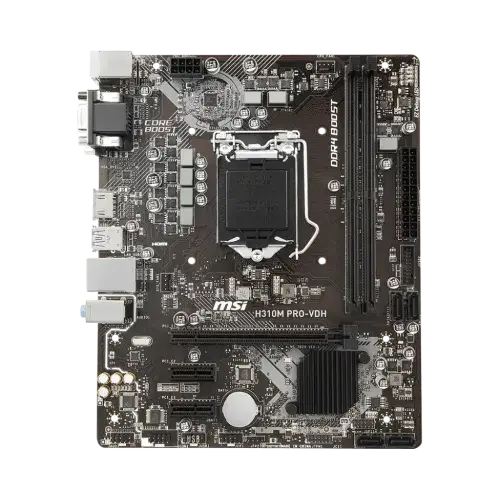

MSI H310M PRO-VDH Intel 9th Gen Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Supported CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket |
| Chipset | Intel H310 Chipset |
| Form Factor | m-ATX Form Factor |
| PCI | PCI 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
| Type | Supports Dual-Channel mode |
| Slots | 2 x DDR4 memory slots |
| Supported Memory | Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC) Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Maximum Memory |
| Graphics | Graphics 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H |
| HDMI | 1 x HDMI port, supports a maximum resolution of 4096x2160@30H |
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz | 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
| LAN Port (s) | 1 x RTL8111H Gigabit LAN controller |
| Supported Storage | Intel H310 Chipset 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology |
| Audio | Realtek ALC 887/897 Codec |
| Manufacturing Warranty | 03 years |
Description
MSI H310M PRO-VDH Intel 9th Gen Motherboard The MSI H310M PRO VDH Intel 9th Gen Motherboard is a reliable and cost effective MSI motherboard built on the Intel H310 chipset, designed to support 9th and 8th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1151 socket, making it a solid choice for entry level and mainstream desktop systems. This compact MSI 310 motherboard features the micro ATX form factor, providing a space saving layout without compromising essential performance. It supports up to 32GB of DDR4 memory at speeds up to 2666 MHz through two DIMM slots, delivering smooth multitasking and efficient computing for everyday users. Expansion is handled with a PCIe 3.0 x16 slot for graphics cards and two PCIe 2.0 x1 slots for add on components, while four SATA III ports and offer flexible storage options. Audio needs are met with Realtek 7.1 channel HD audio, supporting HDMI, DVI D, and VGA display outputs for versatile monitor compatibility. This MSI Motherboard can function as an MSI WiFi motherboard when paired with a compatible wireless adapter, and it offers reliable wired networking via Gigabit LAN. MSI technologies such as Core Boost and Audio Boost enhance stability and sound quality, while helpful features like EZ Debug LED and Steel Armor for the PCIe slot simplify installation and provide added durability. Ideal for home PCs, office workstations, and basic gaming setups, the MSI H310M PRO VDH delivers essential performance and dependable features in a user friendly, cost effective design that suits a variety of use cases. Let me know if you want help comparing it with other boards or choosing compatible parts.
