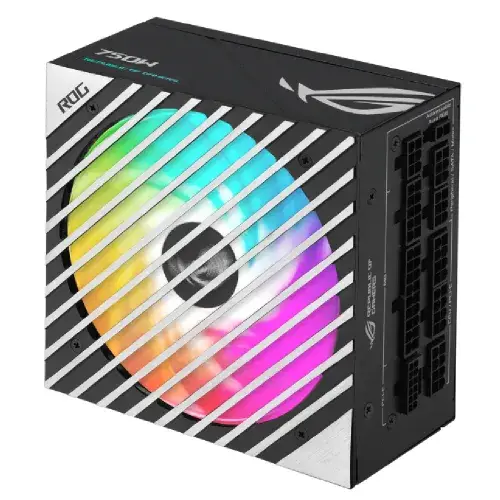

ASUS ROG LOKI SFX-L 750W 80 Plus Platinum Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Efficiency (Approx.) | 90% at 20% Load 92% at 50% Load 89% at 100% Load |
| Certification | 80Plus Platinum Certification |
| Fan Size | 120 mm |
| Lighting Effect | ARGB |
| Modular Type | Fully modular |
| Total Power | 750W |
| AC Input | 100-240Vac |
| DC Output | +3.3V +5V +12V -12V +5Vsb |

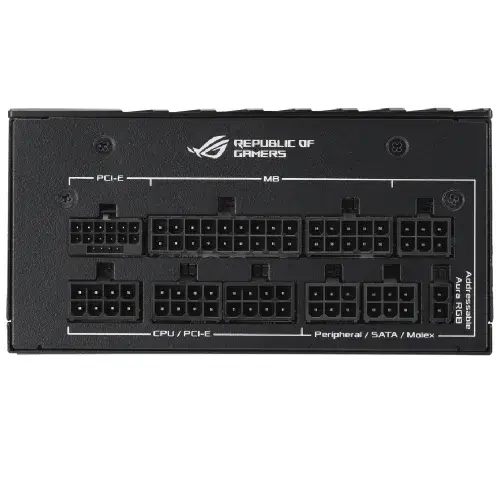

| Main Power | 24/20-pin x 1 |
| CPU | 4+4-pin x 2 |
| PCI-E | PCI-E 16-pin x 1 PCI-E 8-pin x 3 |
| SATA | 6 |
| Manufacturing Warranty | 10 years |
Description
The ASUS ROG LOKI SFX-L 750W 80 Plus Platinum Power Supply is a high-performance power supply designed for Intel Form Factor and ATX 3.0 standards. With dimensions of 125 x 125 x 63.5 mm, it is a compact power supply that fits easily into small-form-factor builds. It has an efficiency rating of 80Plus Platinum, which means it is highly efficient and reduces energy consumption. The ASUS ROG LOKI SFX-L 750W 80 Plus Platinum Power Supply comes equipped with a range of protection features, including OPP/OVP/UVP/SCP/OCP/OTP, ensuring that your system components remain safe from overloading, short-circuits, and other potential hazards. It also meets ROHS standards, making it free from hazardous materials that can harm the environment. This power supply has an AC input range of 100-240Vac and a DC output voltage of +3.3V, +5V, +12V, -12V, and +5Vsb, with a maximum load of 20A, 20A, 62.5A, 0.8A, and 2.5A respectively. The combined load capacity is 110W, 110W, 750W, 9.6W, and 12.5W. The total output power is 750W, which is sufficient for most high-end gaming PCs and workstations. The ASUS ROG LOKI SFX-L 750W 80 Plus Platinum Power Supply comes with a range of connectors, including MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1, PCI-E 8-pin x 3, SATA x 6, and PERIPHERAL x 4, making it compatible with a wide range of motherboards and other components. It also features AURA SYNC and ARGB lighting for customizable aesthetics and an 0dB fan button for silent operation.
