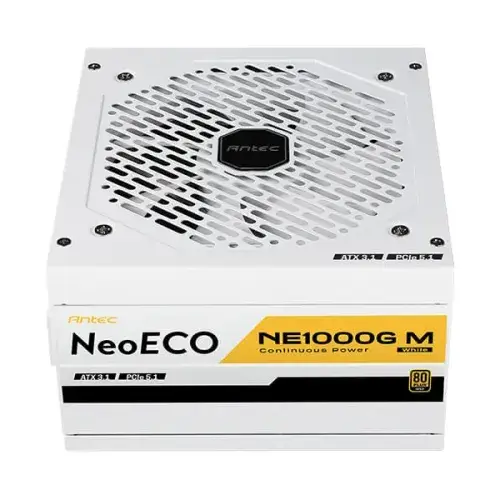

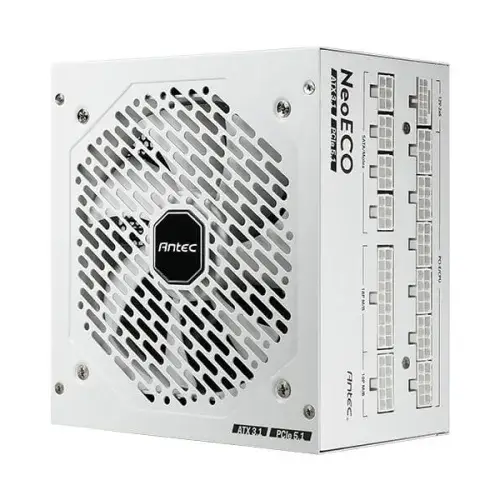

Antec NE1000G M White 1000W ATX 3.0 & PCIE 5.0 80+ Gold Full Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 PLUS GOLD |
| Fan Size | 120mm FDB Silent Fan |
| Others | PFC: Active PFC ATX 3.0 & PCIe 5.0 Compatible Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Voltage | 100V-240V |
| Frequency Range | 60Hz-50Hz |
| Current | 12A-6A |
| Modular Type | Full-modular |
| Total Power | 1000W |
| Main Power | 1 x 24 (20+4) pin MB |
| CPU | 2 x 8 (4+4) pin CPU |
| PCI-E | 1 x 16(12+4)pin PCIE 5.1 12V-2x6 4 x 8(6+2) Pin PCI-E |
| SATA | 12 x SATA |
| Molex | 4 x Molex |
| Manufacturing Warranty | 10 Years |
Description
The Antec NE1000G M White 1000W ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply is a powerful and dependable option for high-end PC builds. Designed to meet the most recent ATX 12V 3.1 and PCIe 5.1 standards, it provides up to 1000 watts of reliable and efficient power, making it ideal for powerful gaming systems, workstations, and next-generation GPU combinations. The Antec NE1000G M White 1000W ATX 3.0 Power Supply has Antec's PhaseWave design and high-quality Japanese capacitors for exceptional endurance and electrical performance. The Antec Full Modular Power Supply has 80 Plus Gold certification, indicating exceptional energy efficiency and low heat generation. The Antec NE1000G M White 1000W ATX 3.0 Power Supply's full-modular design ensures clean cable management by allowing customers to connect only the necessary connections, hence improving ventilation and simplifying installation. The Antec NE1000G M White 1000W ATX 3.0 Power Supply features a 120mm fluid dynamic bearing (FDB) silent fan that runs softly while providing consistent cooling even under high loads. The Antec Power Supply has a wide input voltage range of 100V to 240V, a current range of 12A to 6A, and a frequency range of 50Hz to 60Hz. Active power factor adjustment (APFC) improves overall stability and power quality. The Antec NE1000G M White 1000W ATX 3.0 & PCIe 5.1 80+ Gold Full Modular Power Supply also has advanced protection features like Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge and Inrush Protection (SIP), and No Load Operation (NLO). One 24(20+4) pin motherboard connector, one 16(12+4) pin PCIe 5.1 12V-2x6 connector, two 8(4+4) pin CPU connectors, four 6+2 pin PCIe connectors, twelve SATA connectors, and four Molex connectors round out the extensive connectivity. The Antec NE1000G M White 1000W ATX 3.0 & PCIe 5.0 80+ Gold Full Modular Power Supply, which has several global certifications including cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, and ICES, combines performance, reliability, and a sleek design for demanding users constructing future-ready systems.
