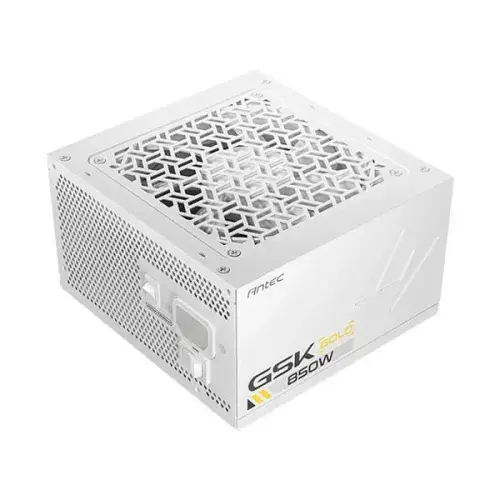

Antec GSK 850W White ATX 3.1 & PCIE 5.1 80+ Gold Full Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 PLUS GOLD |
| Fan Size | 120mm Silent Fan |
| Others | PFC: Active PFC ATX 3.1 & PCIe 5.1 Compatible Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES |
| Voltage | 100V-240V |
| Frequency Range | 50Hz-60Hz |
| Current | 10A Max |
| Modular Type | Full-modular |
| Total Power | 850W |
| Main Power | 1 x 24 (20+4) pin MB |
| CPU | 2 x 8 (4+4) pin CPU |
| PCI-E | 1 x 16 (12+4) pin PCIE 5.1 12VHPWR 4 x 8 (6+2) pin PCI-E |
| SATA | 8 x SATA |
| Molex | 4 x Molex |
| Manufacturing Warranty | 10 Years |
Description
The Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply is a high-end power solution for gaming and workstation builds. It provides steady and effective power for next-generation GPUs and CPUs and is fully compliant with the most recent ATX 12V 3.1 and PCIe 5.1 standards. It is ideal for sophisticated systems that require high power supply and long-term dependability due to its 850 watt total output capacity. With its 80 Plus Gold certification, the Antec GSK 850W White ATX 3.1 Full Modular Power Supply guarantees exceptional energy efficiency and low power usage. Because of its fully modular design, customers may connect only the connections they require, simplifying cable management and improving airflow. For quiet, efficient cooling, the Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply has a 120mm silent fan that is optimized by sophisticated thermal regulation for steady operation even when under load. It runs at a frequency of 50 Hz to 60 Hz, covers a broad input voltage range of 100V to 240V, and has a maximum input current of 10A. Active Power Factor Correction (APFC), which is integrated into the Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply, guarantees cleaner and more dependable power delivery. Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge and Inrush Protection (SIP), and No Load Operation (NLO) are among the extensive industrial-grade safeguards that are included. One 24(20+4) pin motherboard connector, one 16(12+4) pin PCIe 5.1 12VHPWR connector, two 8(4+4) pin CPU connectors, four 6+2 pin PCIe connectors for graphics cards, eight SATA connectors, and four Molex connectors are among the connectivity options available for the Antec GSK 850W White ATX 3.1 Full Modular Power Supply. The Antec GSK 850W White ATX 3.1 Power Supply, certified by international safety standards like as cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, and ICES, combines sleek design, cutting-edge functionality, and superior efficiency for demanding users and contemporary systems.
The Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply is a high-end power solution for gaming and workstation builds. It provides steady and effective power for next-generation GPUs and CPUs and is fully compliant with the most recent ATX 12V 3.1 and PCIe 5.1 standards. It is ideal for sophisticated systems that require high power supply and long-term dependability due to its 850 watt total output capacity. With its 80 Plus Gold certification, the Antec GSK 850W White ATX 3.1 Full Modular Power Supply guarantees exceptional energy efficiency and low power usage. Because of its fully modular design, customers may connect only the connections they require, simplifying cable management and improving airflow. For quiet, efficient cooling, the Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply has a 120mm silent fan that is optimized by sophisticated thermal regulation for steady operation even when under load. It runs at a frequency of 50 Hz to 60 Hz, covers a broad input voltage range of 100V to 240V, and has a maximum input current of 10A. Active Power Factor Correction (APFC), which is integrated into the Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply, guarantees cleaner and more dependable power delivery. Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge and Inrush Protection (SIP), and No Load Operation (NLO) are among the extensive industrial-grade safeguards that are included. One 24(20+4) pin motherboard connector, one 16(12+4) pin PCIe 5.1 12VHPWR connector, two 8(4+4) pin CPU connectors, four 6+2 pin PCIe connectors for graphics cards, eight SATA connectors, and four Molex connectors are among the connectivity options available for the Antec GSK 850W White ATX 3.1 Full Modular Power Supply. The Antec GSK 850W White ATX 3.1 Power Supply, certified by international safety standards like as cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, and ICES, combines sleek design, cutting-edge functionality, and superior efficiency for demanding users and contemporary systems.
