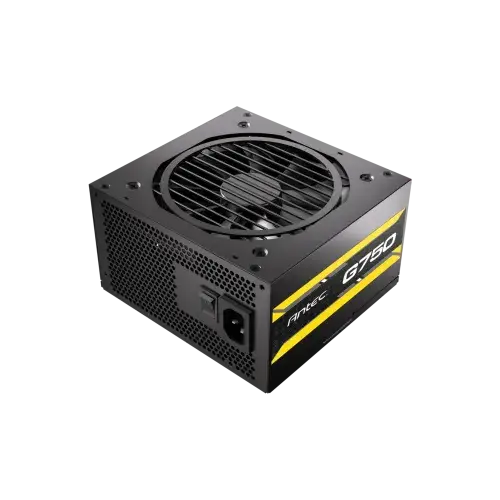

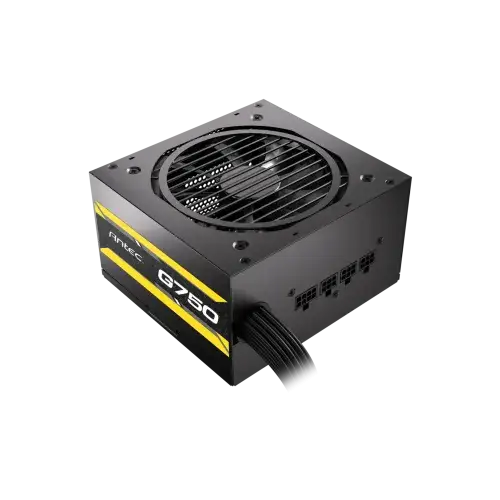

Antec G750 750W 80 Plus Gold Semi Modular Power Supply
Product Specifications
| Specification | Value |
|---|---|
| Certification | 80 Plus Gold |
| Fan Size | 120mm Silent Fan |
| Lighting Effect | N/A |
| Others | PFC: Active PFC Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, NLO Regulatory: CB / CE / BIS Fan: 120mm Silent Fan |
| Voltage | 200V-230VAC |
| Frequency Range | 50Hz |
| Current | 4A Max |
| Modular Type | Semi-Modular |
| Total Power | 750W |
| Main Power | 1 x 24(20+4)pin MB |
| CPU | 2 x 8(4+4)pin EPS 12V |
| PCI-E | 4 x 8(6+2) Pin PCI-E |
| SATA | 8 x SATA |
| Molex | 3 x Molex |
| Manufacturing Warranty | 6 Years replacement warranty including Burn Cases |
Description
The Antec G750 750W 80 Plus Gold Semi-Modular Power Supply is a dependable and effective option for high-performance PC projects. Its 80 Plus Gold certification guarantees maximum energy efficiency by lowering heat production and electricity usage. With features including over-current, under-voltage, over-voltage, over-power, short-circuit, over-temperature, and no-load protection, its cutting-edge CircuitShield technology offers industrial-grade safety, ensuring your components operate safely and steadily. The Antec G750 750W 80 Plus Gold Power Supply's 120mm silent fan ensures quiet operation while retaining superior cooling, and the Thermal Manager function maximizes noise levels and heat dissipation for a well-balanced and effective configuration. The flat cables that come with this semi-modular PSU make wire management easier, improve ventilation, and lessen clutter within your PC case. The DC-to-DC module architecture enhances system stability and interoperability, while the Active Power Factor Correction guarantees dependable power delivery with no energy loss. It offers reliable and effective power delivery for a variety of components with a 750W total output capability and ATX 12V 2.53 compatibility. One 24(20+4)-pin MB, two 8(4+4)-pin EPS 12V, four 8(6+2)-pin PCI-E, eight SATA, and three Molex connectors are among the many connectors on the Antec G750 750W 80 Plus Gold Semi-Modular Power Supply that provide versatility for a variety of hardware configurations. It is perfect for worldwide use because it operates at a frequency of 50 Hz and an input voltage range of 200V to 230VAC. With regulatory certifications including CB, CE, and BIS, as well as a five-year warranty, this Antec G750 750W 80 Plus Gold Semi-Modular Power Supply offers quality assurance and peace of mind.
The Antec G750 750W 80 Plus Gold Semi-Modular Power Supply is a dependable and effective option for high-performance PC projects. Its 80 Plus Gold certification guarantees maximum energy efficiency by lowering heat production and electricity usage. With features including over-current, under-voltage, over-voltage, over-power, short-circuit, over-temperature, and no-load protection, its cutting-edge CircuitShield technology offers industrial-grade safety, ensuring your components operate safely and steadily. The Antec G750 750W 80 Plus Gold Power Supply's 120mm silent fan ensures quiet operation while retaining superior cooling, and the Thermal Manager function maximizes noise levels and heat dissipation for a well-balanced and effective configuration. The flat cables that come with this semi-modular PSU make wire management easier, improve ventilation, and lessen clutter within your PC case. The DC-to-DC module architecture enhances system stability and interoperability, while the Active Power Factor Correction guarantees dependable power delivery with no energy loss. It offers reliable and effective power delivery for a variety of components with a 750W total output capability and ATX 12V 2.53 compatibility. One 24(20+4)-pin MB, two 8(4+4)-pin EPS 12V, four 8(6+2)-pin PCI-E, eight SATA, and three Molex connectors are among the many connectors on the Antec G750 750W 80 Plus Gold Semi-Modular Power Supply that provide versatility for a variety of hardware configurations. It is perfect for worldwide use because it operates at a frequency of 50 Hz and an input voltage range of 200V to 230VAC. With regulatory certifications including CB, CE, and BIS, as well as a five-year warranty, this Antec G750 750W 80 Plus Gold Semi-Modular Power Supply offers quality assurance and peace of mind.
