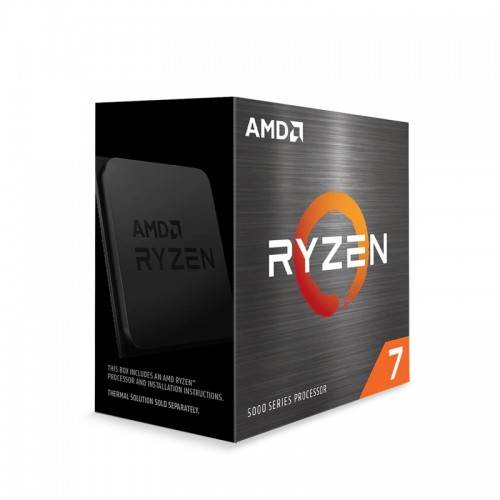

AMD Ryzen 7 5800X Processor
Product Specifications
| Specification | Value |
|---|---|
| Base Frequency | 3.8GHz |
| Maximum Turbo Frequency | Up to 4.7GHz |
| Cache | Total L2 Cache: 4MB Total L3 Cache: 32MB |
| Cores | 8 |
| Threads | 16 |
| Default TDP | 105W |
| Supported Technologies | AMD "Zen 3" Core Architecture AMD StoreMI Technology AMD Ryzen Master Utility AMD Ryzen VR-Ready Premium |
| CPU Cooler | Not Included |
| Maximum Speed | Up to 3200MHz |
| Type | DDR4 |
| Base Frequency | 3.8GHz |
| Manufacturing Warranty | 03 years warranty (No Warranty for Fan or Cooler) |
Description
AMD Ryzen 7 5800X Processor The AMD Ryzen 7 5800X is an 8-core desktop processor with Simultaneous Multithreading (SMT), which allows it to process 16 threads simultaneously. With its launch on 08.10.2020, it is the fastest 8-core processor from AMD. The Ryzen 7 5800X clocks with a base clock of 3.8 GHz and reaches up to 4.7 GHz on one core in turbo mode. When all 8 cores are utilized, the AMD Ryzen 7 5800X achieves up to 4.5 GHz. The performance of AMD Ryzen 7 5800X is consistently very good in all applications. Especially in multi-threaded applications, the native 8-core can show its strengths, although the single-core performance has been significantly improved compared to the older Zen 2 architecture. The internal structure of the processor has not changed fundamentally. The CCX structure has changed somewhat compared to Zen2, because now a CCX consists of up to 8-CPU cores. So, each individual core can access the complete L3 cache (32 MB). Furthermore, the CCX modules are connected to each other via the same I/O die, which we already know from Zen2. According to AMD, the Infinity-Fabric should now reach clock rates of up to 2Ghz, which in turn allows a RAM clock of 4.000 MHz without performance loss. For the manufacturing processes, AMD also relies on TSCM for the Vermeer processors for the 7nm production of the CPU cores, although the I/O die is still supplied in 12nm by GlobalFoundries. In games, AMD's Ryzen 7 5800X can convince with its significantly improved IPC and even put Intel in its place. With the AMD Ryzen 7 5800X, gamers are well prepared for the future as simultaneous streaming is no problem with the new Ryzen 7 5800X.
