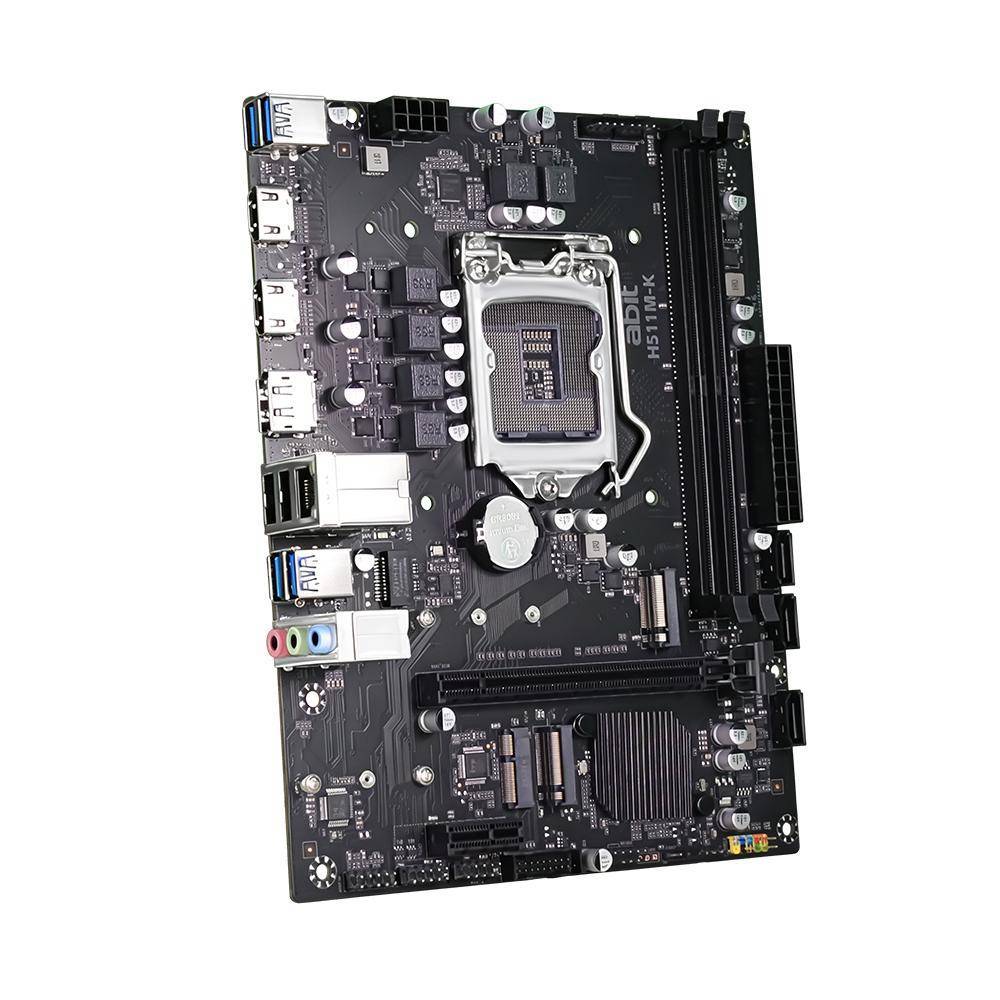

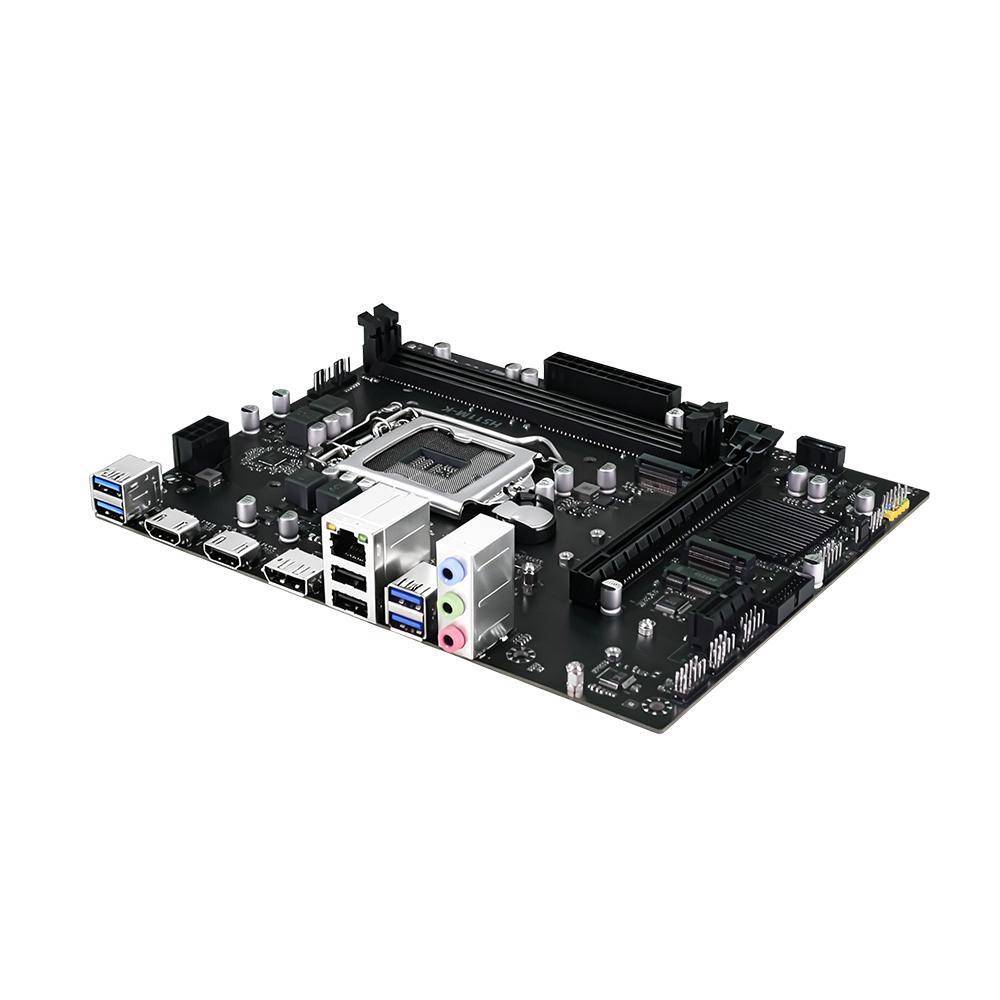

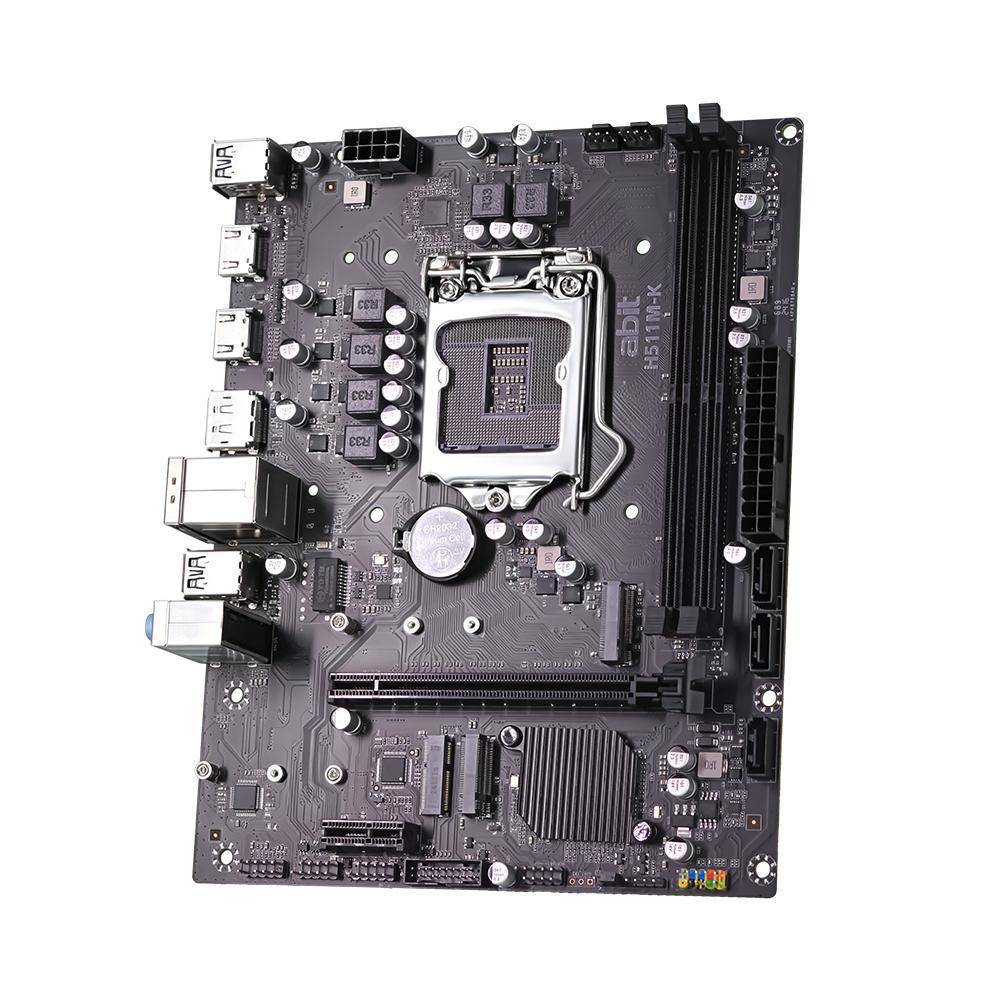

Abit H511M-K Intel 10th Gen DDR4 M.2 Motherboard
Product Specifications
| Specification | Value |
|---|---|
| Model | H511M-K Motherboard |
| CPU Socket | LGA1200 |
| Processor Support | Intel 10th Generation Processors |
| Chipset | Intel H510 |
| Form Factor | Micro-ATX (215mm × 170mm) |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | Up to 32GB |
| Memory Architecture | Dual Channel |
| Storage Ports | 3 × SATA 3.0 |
| M.2 Slot | 1 × M.2 NVMe |
| Display Outputs | 2 × HDMI, 1 × DisplayPort |
| USB Support | 4 × USB 3.0, 2 × USB 2.0 |
| LAN Controller | Realtek 8111H Gigabit Ethernet |
| Audio Codec | Realtek ALC897 5.1-Channel Audio |
| Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe x1 |
Description
The H511M-K Motherboard is designed to provide dependable performance and modern connectivity for Intel-based desktop systems. Powered by the Intel H510 chipset, this motherboard supports Intel 10th Generation LGA1200 processors, making it an excellent choice for home users, office workstations, educational institutions, and small business environments. Equipped with two DDR4 memory slots supporting up to 32GB dual-channel RAM, the H511M-K ensures smooth multitasking and responsive system performance. For storage flexibility, it offers three SATA 3.0 ports and a high-speed M.2 NVMe slot, enabling faster boot times and rapid file access. The motherboard features dual HDMI ports and a DisplayPort output, allowing users to connect multiple modern displays with ease. High-speed networking is provided through the Realtek 8111H Gigabit Ethernet controller, while the Realtek ALC897 5.1-channel audio codec delivers clear and immersive sound quality. With its compact Micro-ATX form factor, advanced expansion options, and reliable connectivity, the H511M-K is an ideal foundation for building efficient and cost-effective desktop PCs.
The H511M-K Motherboard is designed to provide dependable performance and modern connectivity for Intel-based desktop systems. Powered by the Intel H510 chipset, this motherboard supports Intel 10th Generation LGA1200 processors, making it an excellent choice for home users, office workstations, educational institutions, and small business environments. Equipped with two DDR4 memory slots supporting up to 32GB dual-channel RAM, the H511M-K ensures smooth multitasking and responsive system performance. For storage flexibility, it offers three SATA 3.0 ports and a high-speed M.2 NVMe slot, enabling faster boot times and rapid file access. The motherboard features dual HDMI ports and a DisplayPort output, allowing users to connect multiple modern displays with ease. High-speed networking is provided through the Realtek 8111H Gigabit Ethernet controller, while the Realtek ALC897 5.1-channel audio codec delivers clear and immersive sound quality. With its compact Micro-ATX form factor, advanced expansion options, and reliable connectivity, the H511M-K is an ideal foundation for building efficient and cost-effective desktop PCs.
